[VerilogHDL] Verification(32bit register, BRAM)

[VerilogHDL] Verification(32bit register, BRAM)VerilogHDL/Study2024. 5. 23. 01:53@민바Minba

Table of Contents

1. SystemVerilog - 32bit Register

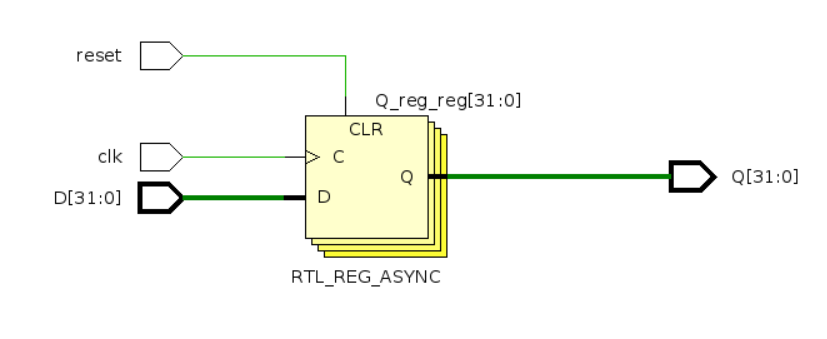

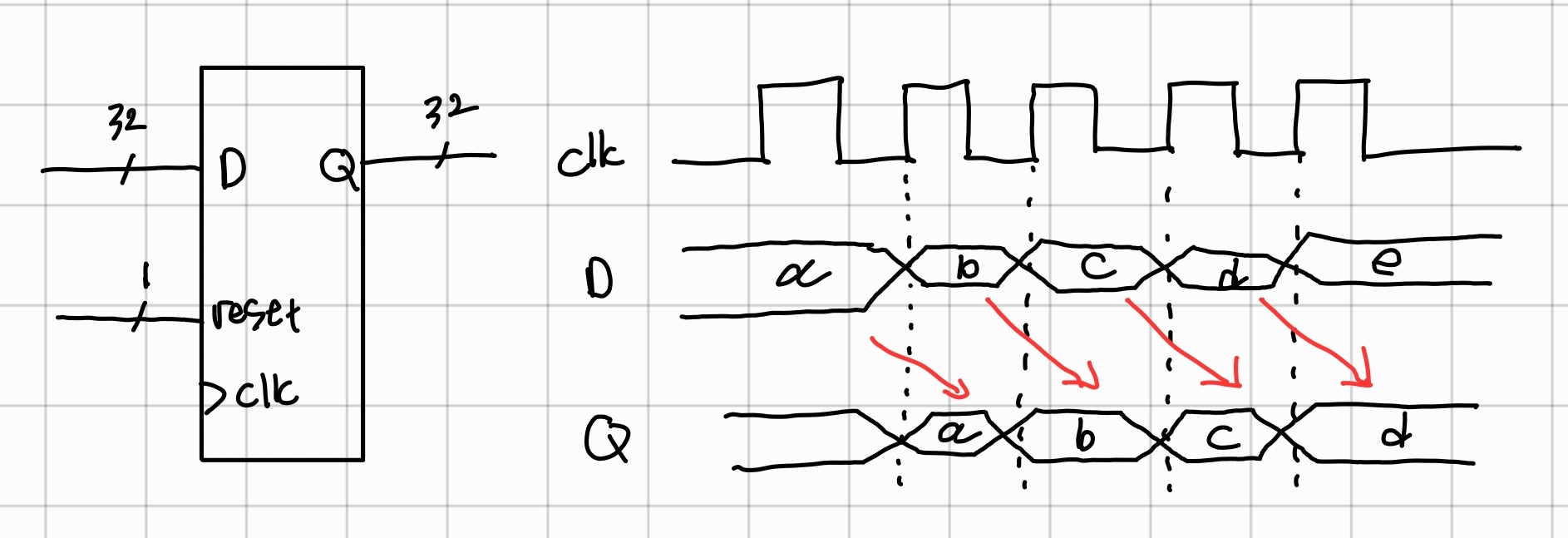

32bit Register 구현

`timescale 1ns / 1ps

module register(
    input clk,
    input reset,
    input [31:0] D,

    output [31:0] Q
    );

    reg [31:0] Q_reg;
    // reg [31:0] Q_next;


    assign Q = Q_reg;

    always @(posedge clk, posedge reset) begin
        if(reset) begin
            Q_reg <= 0;
        end else begin
            Q_reg <= D;
        end
    end

    // always @(*) begin
    //     Q_next = D;
    // end

endmodule

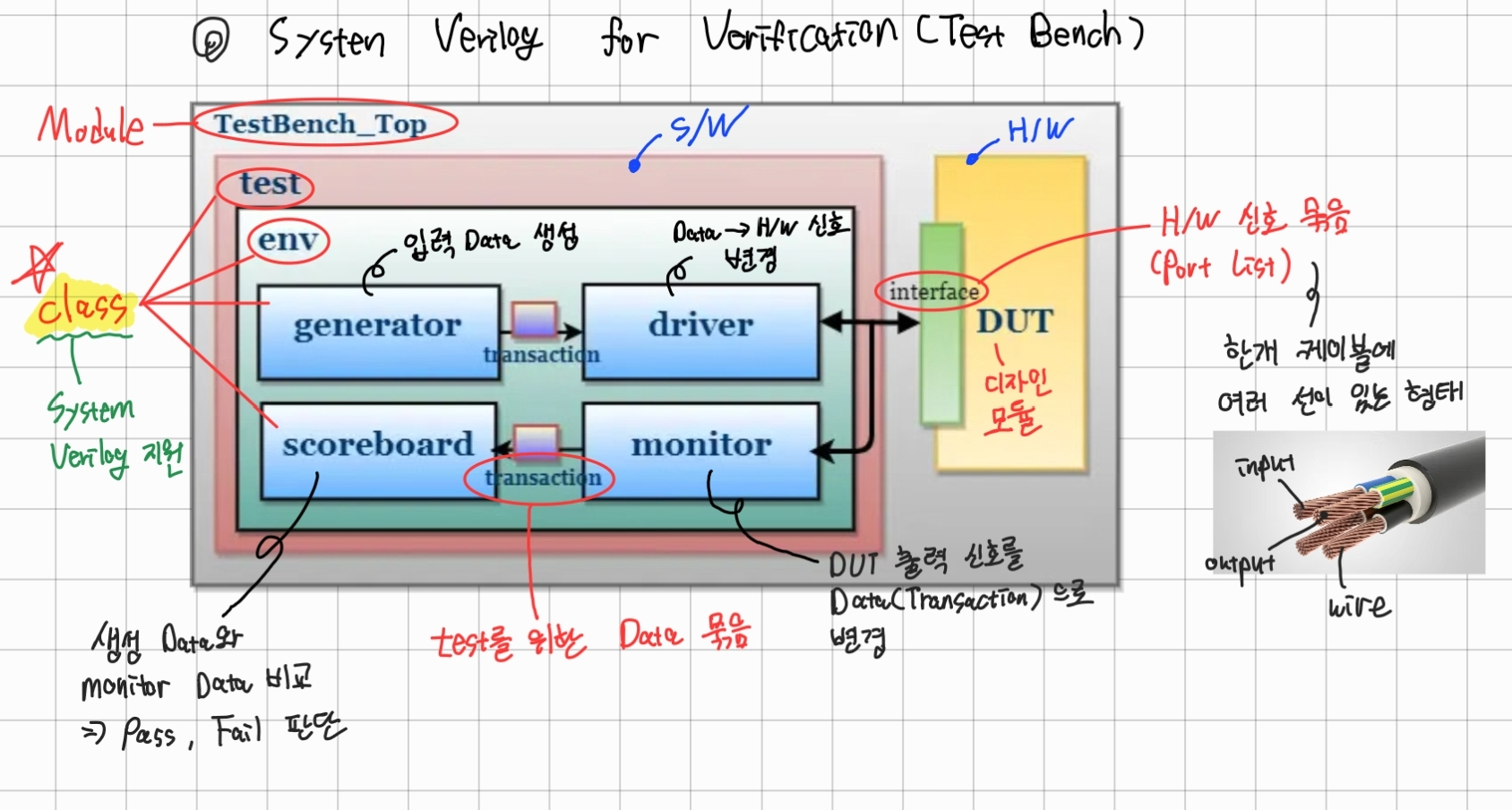

1-2. Verification

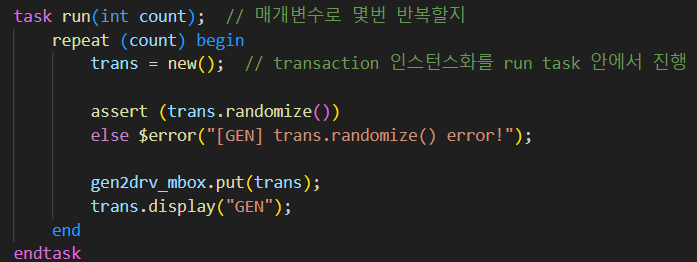

위와 같이 생성자를 반복문 안에 넣었을 때 문제가 생기지 않을까?

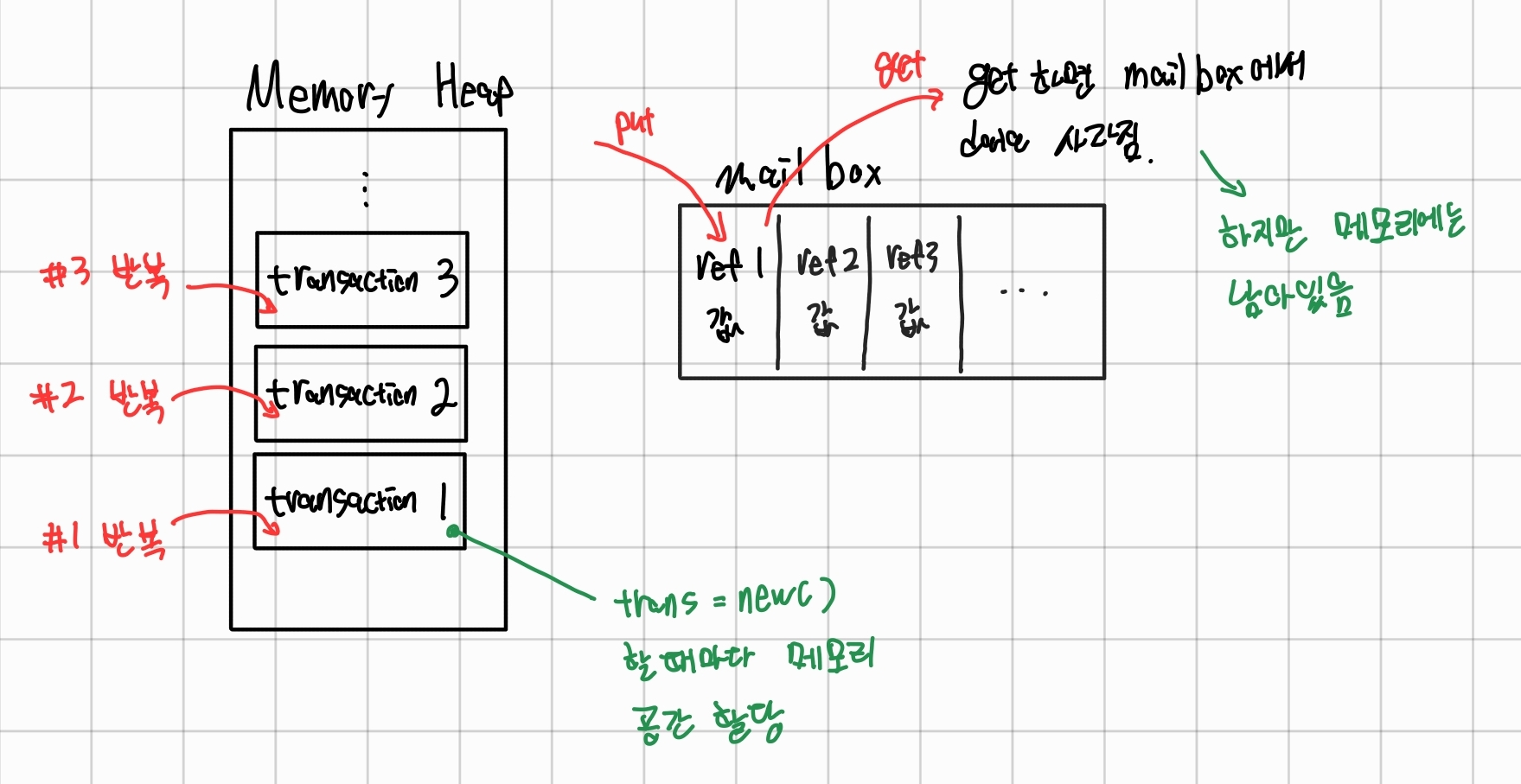

trans = new() 할 때마다 메모리에 공간을 할당하면 Memory leak이 발생하지 않을까??

→ Garbage collection이 동작해서 메모리에 trasaction class instance Data가 자동으로 정리된다.

environment 만들기

class environment;  // OOP AP_main같은 느낌...(각 class 인스턴스화, 초기화, task 실행)
    generator gen;
    driver drv;
    monitor mon;
    scoreboard scb;

    mailbox #(transaction) gen2drv_mbox;
    mailbox #(transaction) mon2scb_mbox;

    event gen_next_event;

    function new(virtual reg_interface reg_intf);
        gen2drv_mbox = new();
        mon2scb_mbox = new();

        gen = new(gen2drv_mbox, gen_next_event);
        drv = new(gen2drv_mbox, reg_intf);
        mon = new(mon2scb_mbox, reg_intf);
        scb = new(mon2scb_mbox, gen_next_event);
    endfunction


    task report();
        $display("=============================");
        $display("==       Final Report      ==");
        $display("=============================");
        $display("Total Test : %d", scb.total_cnt);
        $display("Pass Count : %d", scb.pass_cnt);
        $display("Fail Count : %d", scb.fail_cnt);
        $display("=============================");
        $display("== test bench is finished! ==");
        $display("=============================");
    endtask


    task pre_run();
        drv.reset();
    endtask

    task run();
        fork
            gen.run(20);
            drv.run();
            mon.run();
            scb.run();
        join_any

        report();
        #10 $finish;
    endtask

    task run_test();
        pre_run();
        run();
    endtask
endclass

구현 : driver, monitor 입출력 클럭 동기화(posedge사용)

`timescale 1ns / 1ps

interface reg_interface;
    logic clk;
    logic reset;
    logic [31:0] D;

    logic [31:0] Q;
endinterface


class transaction;
    rand logic [31:0] data;
    logic      [31:0] out;

    task display(string name);
        $display("[%s] data: %x, out: %x", name, data, out);
    endtask
endclass


class generator;
    transaction trans;
    mailbox #(transaction) gen2drv_mbox;
    event gen_next_event;

    // 생성자에 mailbox, event 초기화 추가
    function new(mailbox#(transaction) gen2drv_mbox, event gen_next_event);
        this.gen2drv_mbox   = gen2drv_mbox;
        this.gen_next_event = gen_next_event;
    endfunction

    task run(int count);  // 매개변수로 몇번 반복할지
        repeat (count) begin
            trans = new();  // transaction 인스턴스화를 run task 안에서 진행
            // Garbage collection이 동작해서 메모리에 trasaction class instance Data가 자동으로 정리된다.

            assert (trans.randomize())
            else $error("[GEN] trans.randomize() error!");

            gen2drv_mbox.put(trans);
            trans.display("GEN");
            @(gen_next_event);
        end
    endtask
endclass


class driver;
    transaction trans;
    mailbox #(transaction) gen2drv_mbox;

    virtual reg_interface reg_intf;

    function new(mailbox#(transaction) gen2drv_mbox,
                 virtual reg_interface reg_intf);
        this.gen2drv_mbox   = gen2drv_mbox;
        this.reg_intf       = reg_intf;
    endfunction

    task reset();
        reg_intf.D     <= 0;
        reg_intf.reset <= 1'b1;
        repeat (5) @(posedge reg_intf.clk);
        reg_intf.reset <= 1'b0;
    endtask

    task run();
        forever begin
            // @(posedge reg_intf.clk);
            gen2drv_mbox.get(trans);
            reg_intf.D <= trans.data;  // input

            trans.display("DRV");
            @(posedge reg_intf.clk);  // 여기 지나면 출력
            // driver와 monitor 입, 출력 동기화
        end
    endtask
endclass


class monitor;
    transaction trans;
    mailbox #(transaction) mon2scb_mbox;

    virtual reg_interface reg_intf;

    function new(mailbox#(transaction) mon2scb_mbox,
                 virtual reg_interface reg_intf);
        this.mon2scb_mbox   = mon2scb_mbox;
        this.reg_intf       = reg_intf;
    endfunction

    task run();
        forever begin
            trans = new();

            @(posedge reg_intf.clk);
            trans.data = reg_intf.D;

            @(posedge reg_intf.clk);
            trans.out  = reg_intf.Q;

            mon2scb_mbox.put(trans);
            trans.display("MON");
        end
    endtask
endclass


class scoreboard;
    transaction trans;
    mailbox #(transaction) mon2scb_mbox;
    event gen_next_event;

    int total_cnt, pass_cnt, fail_cnt;

    function new(mailbox#(transaction) mon2scb_mbox, event gen_next_event);
        this.mon2scb_mbox   = mon2scb_mbox;
        this.gen_next_event = gen_next_event;
        total_cnt           = 0;
        pass_cnt            = 0;
        fail_cnt            = 0;
    endfunction

    task run();
        forever begin
            mon2scb_mbox.get(trans);
            trans.display("SCB");

            if (trans.data == trans.out) begin
                $display(" ---> PASS! %x == %x", trans.data, trans.out);
                pass_cnt++;
            end else begin
                $display(" ---> FAIL! %x != %x", trans.data, trans.out);
                fail_cnt++;
            end
            total_cnt++;

            ->gen_next_event;
        end
    endtask
endclass


class environment;  // OOP AP_main같은 느낌...(각 class 인스턴스화, 초기화, task 실행)
    generator gen;
    driver drv;
    monitor mon;
    scoreboard scb;

    mailbox #(transaction) gen2drv_mbox;
    mailbox #(transaction) mon2scb_mbox;

    event gen_next_event;

    function new(virtual reg_interface reg_intf);
        gen2drv_mbox = new();
        mon2scb_mbox = new();

        gen = new(gen2drv_mbox, gen_next_event);
        drv = new(gen2drv_mbox, reg_intf);
        mon = new(mon2scb_mbox, reg_intf);
        scb = new(mon2scb_mbox, gen_next_event);
    endfunction


    task report();
        $display("=============================");
        $display("==       Final Report      ==");
        $display("=============================");
        $display("Total Test : %d", scb.total_cnt);
        $display("Pass Count : %d", scb.pass_cnt);
        $display("Fail Count : %d", scb.fail_cnt);
        $display("=============================");
        $display("== test bench is finished! ==");
        $display("=============================");
    endtask


    task pre_run();
        drv.reset();
    endtask

    task run();
        fork
            gen.run(100);
            drv.run();
            mon.run();
            scb.run();
        join_any

        report();
        #10 $finish;
    endtask

    task run_test();
        pre_run();
        run();
    endtask
endclass


module tb_register ();
    environment env;
    reg_interface reg_intf ();  // interface instantiation

    register dut (
        .clk(reg_intf.clk),
        .reset(reg_intf.reset),
        .D(reg_intf.D),

        .Q(reg_intf.Q)
    );

    always #5 reg_intf.clk = ~reg_intf.clk;

    initial begin
        reg_intf.clk = 0;
    end

    initial begin
        env = new(reg_intf);
        env.run_test();
    end

endmodule

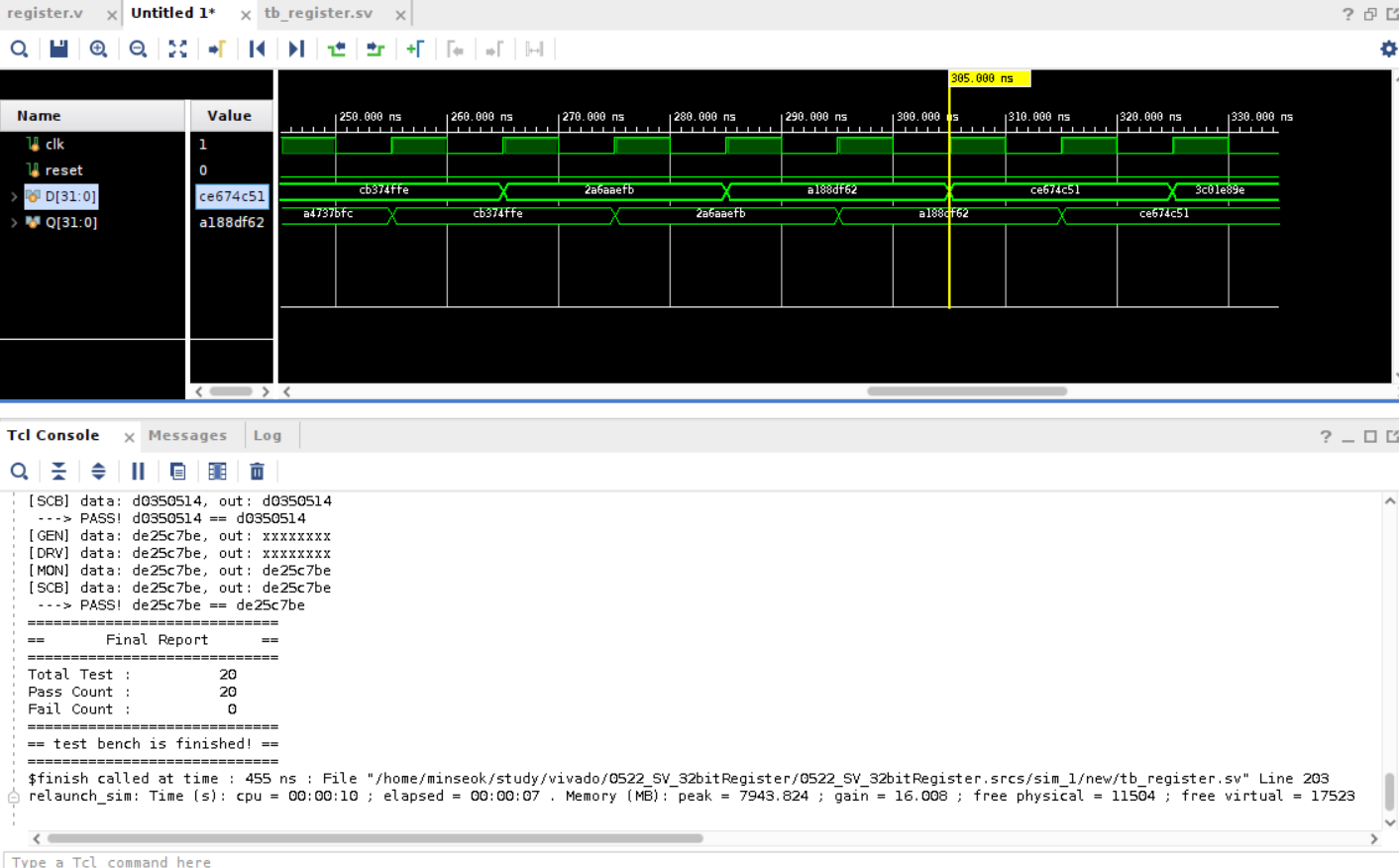

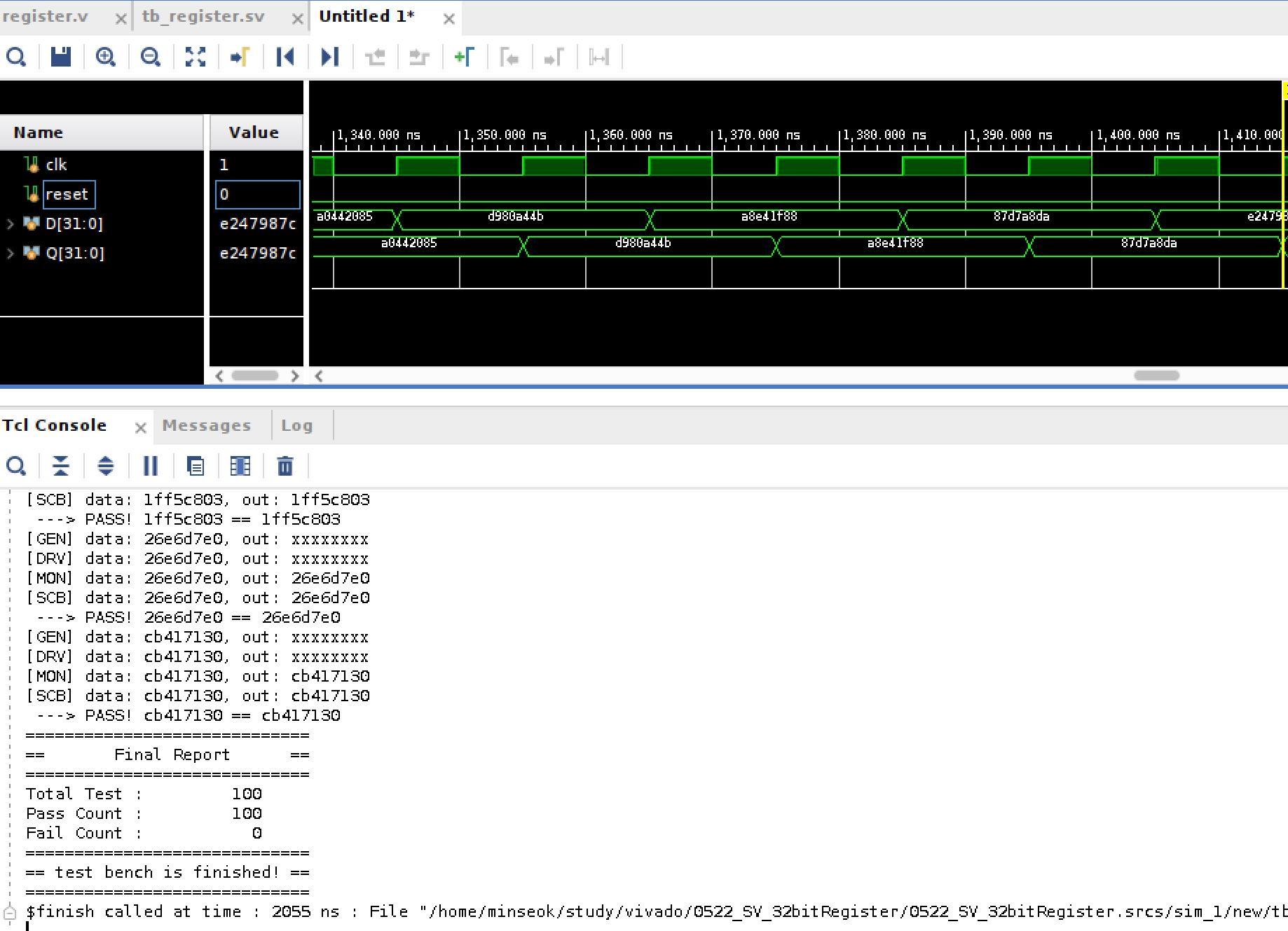

결과

구현2 : driver, monitor 입출력 클럭 동기화(event 사용)

`timescale 1ns / 1ps

interface reg_interface;
    logic clk;
    logic reset;
    logic [31:0] D;

    logic [31:0] Q;
endinterface


class transaction;
    rand logic [31:0] data;
    logic      [31:0] out;

    task display(string name);
        $display("[%s] data: %x, out: %x", name, data, out);
    endtask
endclass


class generator;
    transaction trans;
    mailbox #(transaction) gen2drv_mbox;
    event gen_next_event;

    // 생성자에 mailbox, event 초기화 추가
    function new(mailbox#(transaction) gen2drv_mbox, event gen_next_event);
        this.gen2drv_mbox   = gen2drv_mbox;
        this.gen_next_event = gen_next_event;
    endfunction

    task run(int count);  // 매개변수로 몇번 반복할지
        repeat (count) begin
            trans = new();  // transaction 인스턴스화를 run task 안에서 진행
            // Garbage collection이 동작해서 메모리에 trasaction class instance Data가 자동으로 정리된다.

            assert (trans.randomize())
            else $error("[GEN] trans.randomize() error!");

            gen2drv_mbox.put(trans);
            trans.display("GEN");
            @(gen_next_event);
        end
    endtask
endclass


class driver;
    transaction trans;
    mailbox #(transaction) gen2drv_mbox;
    event drv_next_event;

    virtual reg_interface reg_intf;

    function new(mailbox#(transaction) gen2drv_mbox,
                 virtual reg_interface reg_intf, event drv_next_event);
        this.gen2drv_mbox   = gen2drv_mbox;
        this.reg_intf       = reg_intf;
        this.drv_next_event = drv_next_event;
    endfunction

    task reset();
        reg_intf.D     <= 0;
        reg_intf.reset <= 1'b1;
        repeat (5) @(posedge reg_intf.clk);
        reg_intf.reset <= 1'b0;
    endtask

    task run();
        forever begin
            // @(posedge reg_intf.clk);
            gen2drv_mbox.get(trans);
            reg_intf.D <= trans.data;  // input

            trans.display("DRV");
            @(posedge reg_intf.clk);  // 여기 지나면 출력
            // driver와 monitor 입, 출력 동기화

            -> drv_next_event;  // event를 이용한 입출력 동기화
        end
    endtask
endclass


class monitor;
    transaction trans;
    mailbox #(transaction) mon2scb_mbox;
    event drv_next_event;

    virtual reg_interface reg_intf;

    function new(mailbox#(transaction) mon2scb_mbox,
                 virtual reg_interface reg_intf, event drv_next_event);
        this.mon2scb_mbox   = mon2scb_mbox;
        this.reg_intf       = reg_intf;
        this.drv_next_event = drv_next_event;
    endfunction

    task run();
        forever begin
            @(drv_next_event);

            trans = new();

            // @(posedge reg_intf.clk);
            trans.data = reg_intf.D;

            @(posedge reg_intf.clk);
            trans.out  = reg_intf.Q;

            mon2scb_mbox.put(trans);
            trans.display("MON");
        end
    endtask
endclass


class scoreboard;
    transaction trans;
    mailbox #(transaction) mon2scb_mbox;
    event gen_next_event;

    int total_cnt, pass_cnt, fail_cnt;

    function new(mailbox#(transaction) mon2scb_mbox, event gen_next_event);
        this.mon2scb_mbox   = mon2scb_mbox;
        this.gen_next_event = gen_next_event;
        total_cnt           = 0;
        pass_cnt            = 0;
        fail_cnt            = 0;
    endfunction

    task run();
        forever begin
            mon2scb_mbox.get(trans);
            trans.display("SCB");

            if (trans.data == trans.out) begin
                $display(" ---> PASS! %x == %x", trans.data, trans.out);
                pass_cnt++;
            end else begin
                $display(" ---> FAIL! %x != %x", trans.data, trans.out);
                fail_cnt++;
            end
            total_cnt++;

            ->gen_next_event;
        end
    endtask
endclass


class environment;  // OOP AP_main같은 느낌...(각 class 인스턴스화, 초기화, task 실행)
    generator gen;
    driver drv;
    monitor mon;
    scoreboard scb;

    mailbox #(transaction) gen2drv_mbox;
    mailbox #(transaction) mon2scb_mbox;

    event gen_next_event;
    event drv_next_event;

    function new(virtual reg_interface reg_intf);
        gen2drv_mbox = new();
        mon2scb_mbox = new();

        gen = new(gen2drv_mbox, gen_next_event);
        drv = new(gen2drv_mbox, reg_intf, drv_next_event);
        mon = new(mon2scb_mbox, reg_intf, drv_next_event);
        scb = new(mon2scb_mbox, gen_next_event);
    endfunction


    task report();
        $display("=============================");
        $display("==       Final Report      ==");
        $display("=============================");
        $display("Total Test : %d", scb.total_cnt);
        $display("Pass Count : %d", scb.pass_cnt);
        $display("Fail Count : %d", scb.fail_cnt);
        $display("=============================");
        $display("== test bench is finished! ==");
        $display("=============================");
    endtask


    task pre_run();
        drv.reset();
    endtask

    task run();
        fork
            gen.run(20);
            drv.run();
            mon.run();
            scb.run();
        join_any

        report();
        #10 $finish;
    endtask

    task run_test();
        pre_run();
        run();
    endtask
endclass


module tb_register ();
    environment env;
    reg_interface reg_intf ();  // interface instantiation

    register dut (
        .clk(reg_intf.clk),
        .reset(reg_intf.reset),
        .D(reg_intf.D),

        .Q(reg_intf.Q)
    );

    always #5 reg_intf.clk = ~reg_intf.clk;

    initial begin
        reg_intf.clk = 0;
    end

    initial begin
        env = new(reg_intf);
        env.run_test();
    end

endmodule

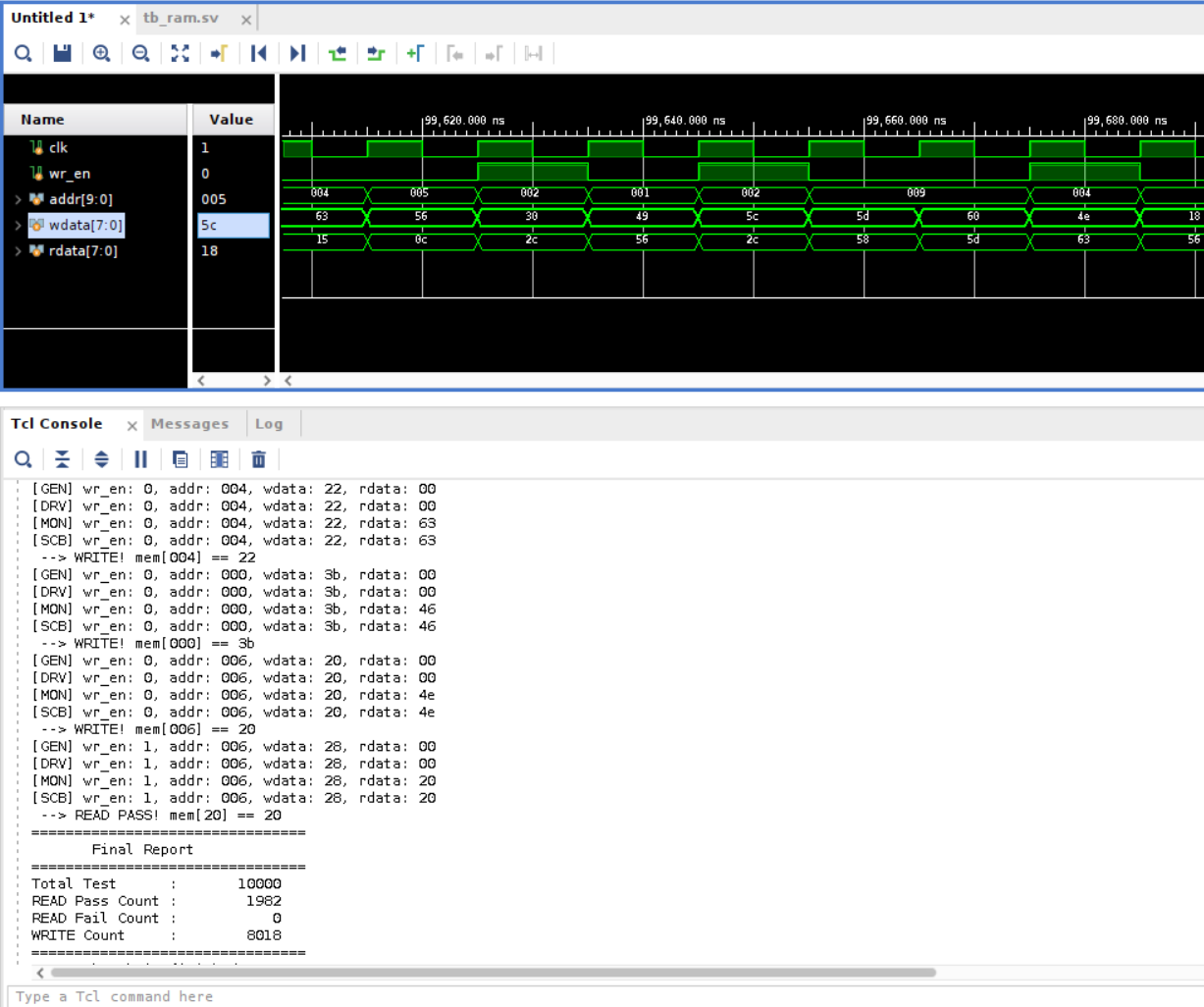

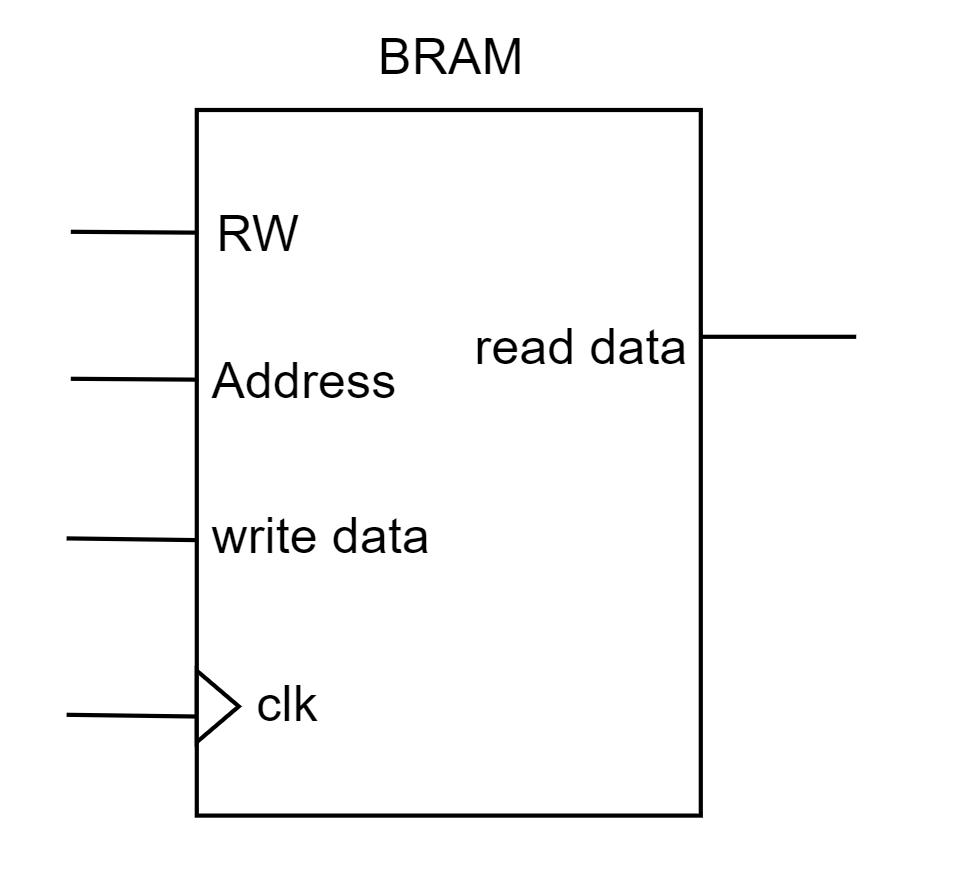

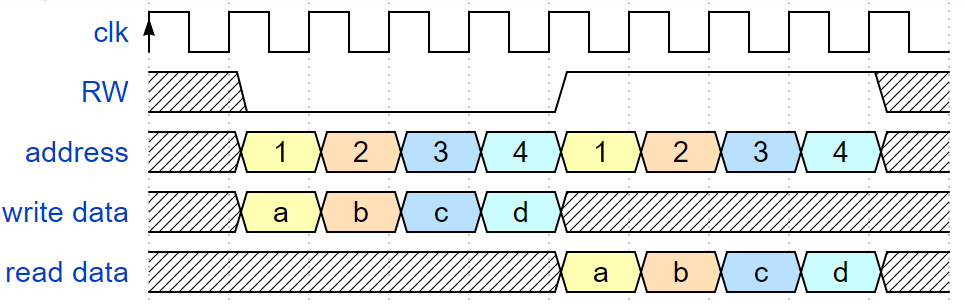

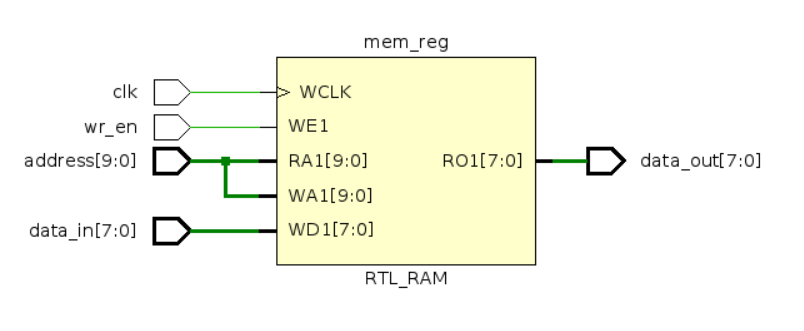

GitHub - k1minseok/SystemVerilog_BRAM_0522: BRAM Verification

BRAM Verification. Contribute to k1minseok/SystemVerilog_BRAM_0522 development by creating an account on GitHub.

github.com

결과

2. SystemVerilog - Block RAM(≈ SRAM)

RW = 0일때, write mode이며 입력한 wrie data가 입력한 address에 저장된다.
RW = 1일때, read mode이며 입력한 address의 저장된 값이 read data로 출력된다.

구현

`timescale 1ns / 1ps


module ram (
    input       clk,
    input [9:0] address,
    input [7:0] wdata,
    input       wr_en,

    output [7:0] rdata
);

    reg [7:0] mem[0:2**10-1];  // 8bit짜리 메모리 공간 n개

    integer i;

    initial begin       // 메모리 값 초기화
        for (i = 0; i < 2 ** 10 - 1; i = i + 1) begin
            mem[i] = 0;
        end
    end

    always @(posedge clk) begin
        if (!wr_en) begin
            mem[address] <= wdata;
        end
    end

    assign rdata = mem[address];

endmodule

2-1. Verification

`timescale 1ns / 1ps

interface ram_interface;
    logic       clk;
    logic       wr_en;
    logic [9:0] addr;
    logic [7:0] wdata;

    logic [7:0] rdata;
endinterface


class transaction;
    rand bit       wr_en;   // bit : 2state type
    rand bit [9:0] addr;
    rand bit [7:0] wdata;
    bit      [7:0] rdata;

    task display(string name);
        $display("[%s] wr_en: %x, addr: %x, wdata: %x, rdata: %x", name, wr_en,
                 addr, wdata, rdata);
    endtask

    // 제약사항 설정 -> 랜덤 값 범위 설정 가능 : 이름은 상관 없음
    // constraint c_addr {addr < 10;}
    constraint c_addr {addr inside {[10:19]};}    // addr = 10 ~ 19 범위
    constraint c_wdata1 {wdata < 100;}
    constraint c_wdata2 {wdata > 10;}
    // constraint c_wr_en {wr_en dist {0:=100, 1:=110};}   // 0~100까지 0, 101~110까지 1
    constraint c_wr_en {wr_en dist {0:/80, 1:/20};} // wr_en 0,1비율 60%, 40%
endclass


class generator;
    transaction            trans;
    mailbox #(transaction) gen2drv_mbox;
    event                  gen_next_event;

    function new(mailbox#(transaction) gen2drv_mbox, event gen_next_event);
        this.gen2drv_mbox   = gen2drv_mbox;
        this.gen_next_event = gen_next_event;

    endfunction

    task run(int count);
        repeat(count) begin // count만큼 계속 반복되면 transaction이 메모리에
                            // count 숫자만큼 할당될 거 같지만 garbage collection이 동작해서
                            // 메모리에 있는 transaction class instance data가 자동으로
                            // 정리된다
            trans = new();
            assert (trans.randomize())
            else $error("[GEN] trans.radomize() error!");
            gen2drv_mbox.put(trans);
            trans.display("GEN");
            @(gen_next_event);  //
        end
    endtask
endclass


class driver;
    transaction trans;
    mailbox #(transaction) gen2drv_mbox;

    virtual ram_interface ram_intf;

    function new(virtual ram_interface ram_intf,
                 mailbox#(transaction) gen2drv_mbox);
        this.ram_intf = ram_intf;
        this.gen2drv_mbox = gen2drv_mbox;

    endfunction

    task reset ();      // task reset -> driver에는 보통 초기화 해주는 코드가 들어감
        ram_intf.wr_en <= 0;
        ram_intf.addr  <= 0;
        ram_intf.wdata <= 0;
        repeat (5) @(posedge ram_intf.clk);
    endtask

    task run();
        forever begin
            gen2drv_mbox.get(trans);
            ram_intf.wr_en <= trans.wr_en;
            ram_intf.addr  <= trans.addr;
            ram_intf.wdata <= trans.wdata;
            // if (trans.wr_en) begin  // read
            //     ram_intf.wr_en <= trans.wr_en;
            //     ram_intf.addr  <= trans.addr;
            // end else begin  // write
            //     ram_intf.wr_en <= trans.wr_en;
            //     ram_intf.addr  <= trans.addr;
            //     ram_intf.wdata <= trans.wdata;
            // end
            trans.display("DRV");
            @(posedge ram_intf.clk);
        end
    endtask
endclass


class monitor;
    transaction trans;
    mailbox #(transaction) mon2scb_mbox;

    virtual ram_interface ram_intf;

    function new(virtual ram_interface ram_intf,
                 mailbox#(transaction) mon2scb_mbox);
        this.ram_intf = ram_intf;
        this.mon2scb_mbox = mon2scb_mbox;
    endfunction

    task run();
        forever begin
            trans = new();
            @(posedge ram_intf.clk);
            trans.wr_en = ram_intf.wr_en;
            trans.addr  = ram_intf.addr;
            trans.wdata = ram_intf.wdata;
            trans.rdata = ram_intf.rdata;

            mon2scb_mbox.put(trans);
            trans.display("MON");
        end
    endtask
endclass


class scoreboard;
    transaction trans;
    mailbox #(transaction) mon2scb_mbox;
    event gen_next_event;

    int total_cnt, pass_cnt, fail_cnt, write_cnt;
    logic [7:0] mem[0:2**10-1];  // test용 메모리

    function new(mailbox#(transaction) mon2scb_mbox, event gen_next_event);
        this.mon2scb_mbox = mon2scb_mbox;
        this.gen_next_event = gen_next_event;
        total_cnt = 0;
        pass_cnt = 0;
        fail_cnt = 0;
        write_cnt = 0;

        for (int i = 0; i < 2 ** 10 - 1; i++) begin
            mem[i] = 0;
        end
    endfunction

    task run();
        forever begin
            mon2scb_mbox.get(trans);
            trans.display("SCB");
            if (trans.wr_en) begin  //read
                if (mem[trans.addr] == trans.rdata) begin
                    $display(" --> READ PASS! mem[%x] == %x", mem[trans.addr],
                             trans.rdata);
                    pass_cnt++;
                end else begin
                    $display(" --> READ FAIL! mem[%x] == %x", mem[trans.addr],
                             trans.rdata);
                    fail_cnt++;
                end
                // 초기 logic mem값에는 데이터가 저장되어 있지 않음(초기화했기때문에 값 모두 0)
                // dut의 reg mem도 같음 -> write하기 전까지 0 == 0 으로 비교되고
                // write한 후 제대로 저장 값과 출력 값이 보임
            end else begin  //write
                mem[trans.addr] = trans.wdata;
                $display(" --> WRITE! mem[%x] == %x", trans.addr, trans.wdata);
                write_cnt++;
            end

            total_cnt++;
            ->gen_next_event;
        end
    endtask
endclass


class environment;
    generator              gen;
    driver                 drv;
    monitor                mon;
    scoreboard             scb;

    event                  gen_next_event;

    mailbox #(transaction) gen2drv_mbox;
    mailbox #(transaction) mon2scb_mbox;


    function new(virtual ram_interface ram_intf);
        gen2drv_mbox = new();
        mon2scb_mbox = new();

        gen = new(gen2drv_mbox, gen_next_event);
        drv = new(ram_intf, gen2drv_mbox);
        mon = new(ram_intf, mon2scb_mbox);
        scb = new(mon2scb_mbox, gen_next_event);
    endfunction

    task pre_run();
        drv.reset();
    endtask

    task report();
        $display("================================");
        $display("       Final Report       ");
        $display("================================");
        $display("Total Test      : %d", scb.total_cnt);
        $display("READ Pass Count : %d", scb.pass_cnt);
        $display("READ Fail Count : %d", scb.fail_cnt);
        $display("WRITE Count     : %d", scb.write_cnt);
        $display("================================");
        $display("  test bench is finished! ");
        $display("================================");
    endtask


    task run();

        fork
            gen.run(10000);
            drv.run();
            mon.run();
            scb.run();
        join_any

        report();
        #10 $finish;
    endtask

    task run_test();
        pre_run();
        run();
    endtask
endclass


// test bench
// 초기화, 동작 코드
module tb_ram ();
    environment env;
    ram_interface ram_intf ();

    ram dut (
        .clk(ram_intf.clk),
        .address(ram_intf.addr),
        .wdata(ram_intf.wdata),
        .wr_en(ram_intf.wr_en),  // write enable

        .rdata(ram_intf.rdata)
    );

    always #5 ram_intf.clk = ~ram_intf.clk;

    initial begin
        ram_intf.clk = 0;
    end

    initial begin
        env = new(ram_intf);
        env.run_test();
    end

endmodule

GitHub - k1minseok/SystemVerilog_16bitRegister_0521: Register Verification

Register Verification. Contribute to k1minseok/SystemVerilog_16bitRegister_0521 development by creating an account on GitHub.

github.com

결과

위 시뮬레이션 결과의 콘솔창에서 generator와 driver의 rdata는 따로 설정을 안했기 때문에 0이 나오고

monitor와 scoreboard에서는 DUT의 출력(read data)가 나온다.

class transaction;
    rand bit       wr_en;
    rand bit [9:0] addr;
    rand bit [7:0] wdata;
    bit      [7:0] rdata;

    task display(string name);
        $display("[%s] wr_en: %x, addr: %x, wdata: %x, rdata: %x", name, wr_en,
                 addr, wdata, rdata);
    endtask

    // 제약사항 설정 -> 랜덤 값 범위 설정 가능 : 이름은 상관 없음
    // constraint c_addr {addr < 10;}
    constraint c_addr {addr inside {[10:19]};}    // addr = 10 ~ 19 범위
    constraint c_wdata1 {wdata < 100;}
    constraint c_wdata2 {wdata > 10;}
    // constraint c_wr_en {wr_en dist {0:=100, 1:=110};}   // 0~100까지 0, 101~110까지 1
    constraint c_wr_en {wr_en dist {0:/80, 1:/20};} // wr_en 0,1비율 60%, 40%
endclass

constraint <name> {제약 조건} : 제약 사항 설정

은 아무거나 넣어도 상관없다.
제약 조건은 랜덤 값의 조건(범위)를 설정한다. → 같은 변수에 대한 제약조건은 AND

rand & randc

rand : 무작위 랜덤
randc : 순환 랜덤 ← 경우의 수에 중복이 없음(같은 값이 나오지 않음)

Made By Minseok KIM

저작자표시 비영리 변경금지

'VerilogHDL > Study' 카테고리의 다른 글

[VerilogHDL] CPU 기본 구조, 메모리, Counter 설계(Control Unit, Data Path) (1)	2024.06.03
[VerilogHDL] FIFO, UART&FIFO (0)	2024.05.30
[VerilogHDL] System Verilog 기초 (0)	2024.05.22
[VerilogHDL] UART Rx, Tx 최종(Oversampling) (0)	2024.05.22
[VerilogHDL] UART Tx(2) (0)	2024.05.22

@민바Minba :: Minba's blog

Let's Be Happy!

도움이 되었으면 좋겠어요 :)
