[VerilogHDL] UART Tx(2)

1.  UART(Tx v.2)



• 8개 state를 만들지 않고 baudrate tick에 한번씩 data 1bit씩 전송

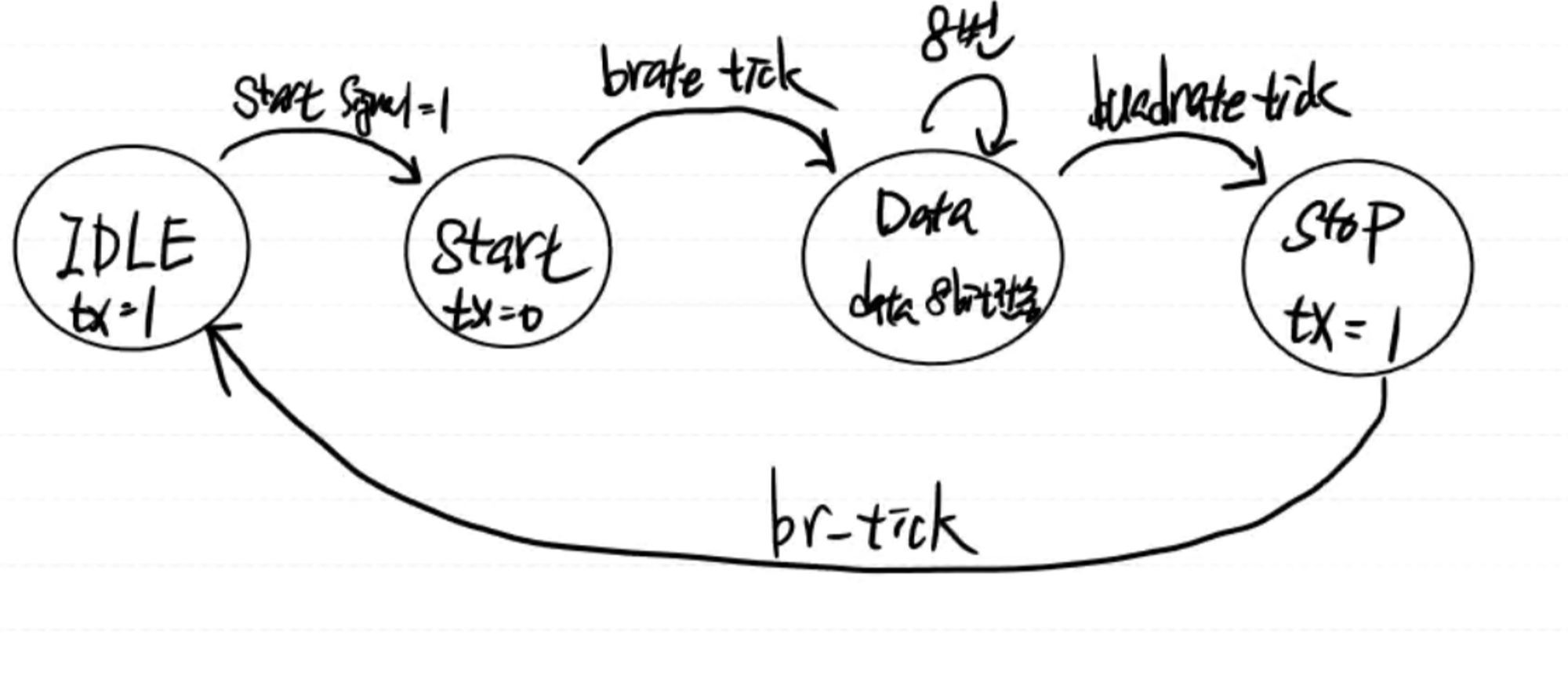

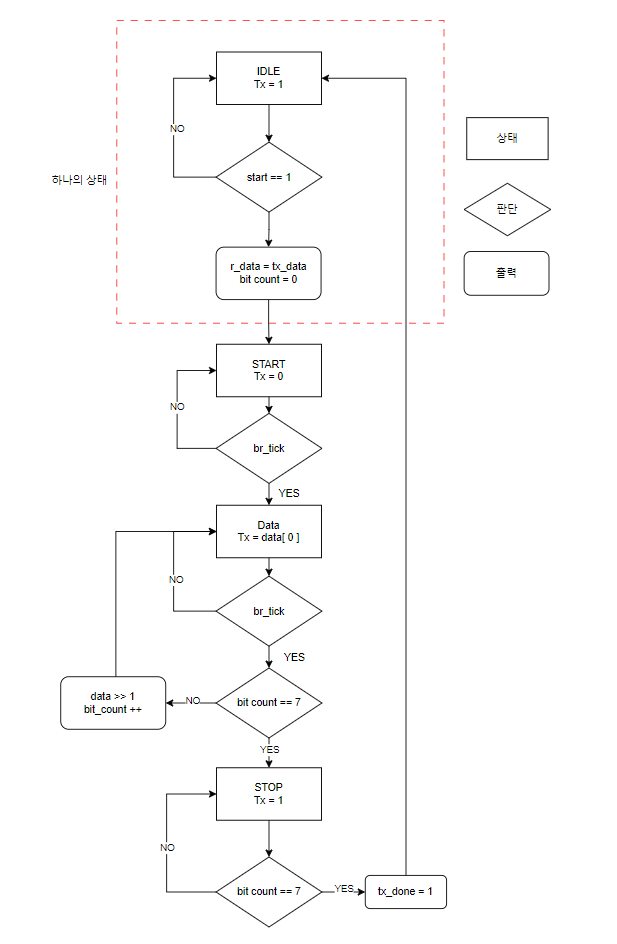

ASM chart





구현

`timescale 1ns / 1ps

module uart (
    input clk,
    input reset,
    input tx_start,
    input [7:0] tx_data,

    output tx,
    output tx_done
);

    wire w_br_tick;

    baudrate_generator #(
        .HERZ(9600)
    ) U_BR_Gen (
        .clk  (clk),
        .reset(reset),

        .br_tick(w_br_tick)
    );


    transmitter U_TxD (
        .clk(clk),
        .reset(reset),
        .tx_start(tx_start),
        .br_tick(w_br_tick),
        .tx_data(tx_data),

        .tx(tx),
        .tx_done(tx_done)
    );

endmodule


module baudrate_generator #(
    parameter HERZ = 9600
) (
    input clk,
    input reset,

    output br_tick
);

    // reg [$clog2(100_000_000/9600)-1:0] counter_reg, counter_next;
    reg [$clog2(100_000_000/HERZ)-1:0] counter_reg, counter_next;
    reg tick_reg, tick_next;

    assign br_tick = tick_reg;

    always @(posedge clk, posedge reset) begin
        if (reset) begin
            counter_reg <= 0;
            tick_reg <= 1'b0;
        end else begin
            counter_reg <= counter_next;
            tick_reg <= tick_next;
        end
    end

    always @(*) begin
        counter_next = counter_reg;
        // if (counter_reg == 100_000_000 / 9600 - 1) begin  // baudrate 9600Hz
        if (counter_reg == 100_000_000 / HERZ - 1) begin
            counter_next = 0;
            tick_next = 1'b1;
        end else begin
            counter_next = counter_reg + 1;
            tick_next = 1'b0;
        end
    end
endmodule


module transmitter (
    input clk,
    input reset,
    input tx_start,
    input br_tick,
    input [7:0] tx_data,

    output tx,
    output tx_done
);

    localparam IDLE = 0, START = 1, DATA = 2, STOP = 3;

    reg [7:0] tx_data_reg, tx_data_next;
    reg [1:0] state, state_next;
    reg [2:0] bit_cnt_reg, bit_cnt_next;
    reg tx_reg, tx_next, tx_done_reg, tx_done_next;


    // state rigister
    always @(posedge clk, posedge reset) begin
        if (reset) begin
            state <= IDLE;
            tx_data_reg <= 7'b0;
            bit_cnt_reg <= 3'd0;
            tx_reg <= 1'b1;
            tx_done_reg <= 1'b0;
        end else begin
            state <= state_next;
            tx_data_reg <= tx_data_next;
            bit_cnt_reg <= bit_cnt_next;
            tx_reg <= tx_next;
            tx_done_reg <= tx_done_next;
        end
    end


    // next state logic
    always @(*) begin
        state_next = state;
        tx_done_next = tx_done_reg;
        tx_data_next = tx_data_reg;
        tx_next = tx_reg;
        bit_cnt_next = bit_cnt_reg;

        case (state)
            IDLE: begin
                tx_next = 1'b1;
                tx_done_next = 1'b0;
                if (tx_start) begin
                    tx_data_next = tx_data;
                    bit_cnt_next = 0;
                    state_next   = START;
                end
            end

            START: begin
                tx_next = 1'b0;
                if (br_tick) state_next = DATA;
            end

            DATA: begin
                tx_next = tx_data_reg[0];
                if (br_tick) begin
                    if (bit_cnt_reg == 7) begin
                        state_next = STOP;
                    end else begin
                        bit_cnt_next = bit_cnt_reg + 1;
                        tx_data_next = {1'b0, tx_data_reg[7:1]};
                        // right shift register(bit right shift)
                    end
                end
            end

            STOP: begin
                tx_next = 1'b1;
                if (br_tick) begin
                    state_next   = IDLE;
                    tx_done_next = 1'b1;
                end
            end

        endcase

    end


    // output logic
    assign tx = tx_reg;
    assign tx_done = tx_done_reg;

endmodule





GitHub - k1minseok/Verilog_UARTtx_0516: UART transmitter & Input Reset, Start Button



위 그림과 같이 입력 값의 LSB를 출력 값에 넣고 → right shift → LSB를 출력 값 대입(입력 값의 두번째 비트) → 반복

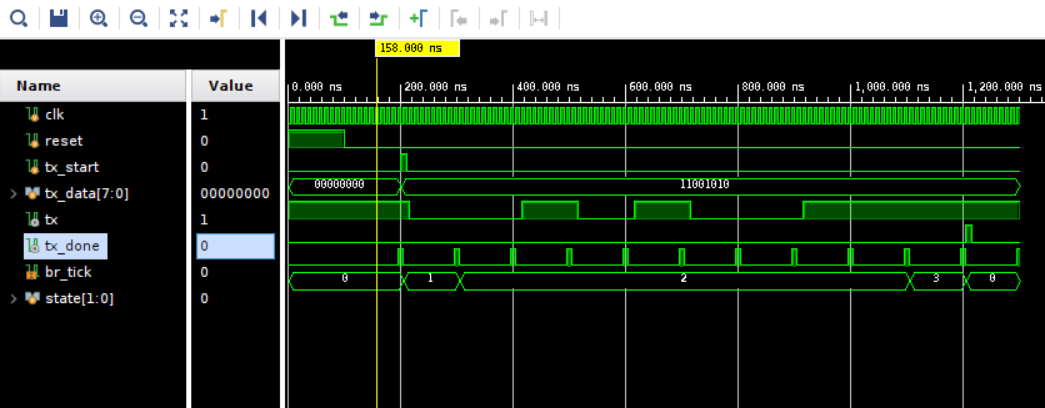

Simulation

`timescale 1ns / 1ps


module tb_uart();

    reg clk;
    reg reset;
    reg tx_start;
    reg [7:0] tx_data;

    wire tx;
    wire tx_done;

    uart dut (
        .clk(clk),
        .reset(reset),
        .tx_start(tx_start),
        .tx_data(tx_data),

        .tx(tx),
        .tx_done(tx_done)
    );


    always #5 clk = ~clk;

    initial begin
        clk = 1'b0;
        reset = 1'b1;
        tx_start = 1'b0;
        tx_data = 0;
    end

    initial begin
        #100 reset = 1'b0;
        #100 tx_data = 8'b11001010; tx_start = 1'b1;
        #10 tx_start = 1'b0;
    end
endmodule





---

1-1.  UART PC로 수신받기

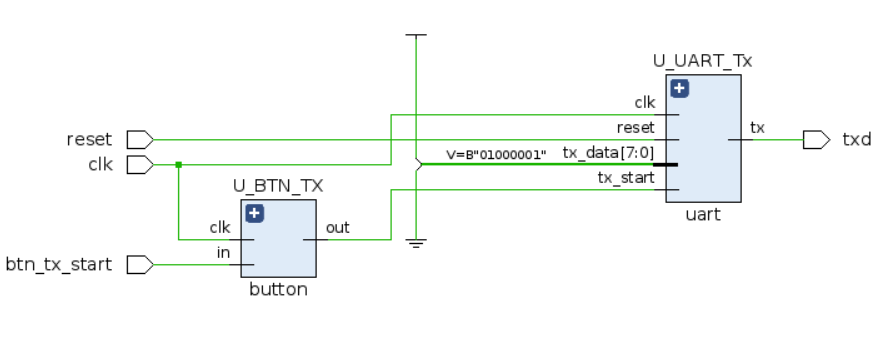

구현

`timescale 1ns / 1ps

module top (
    input clk,
    input reset,
    input btn_tx_start,

    output txd
);

    wire w_btn_tx_start;

    button U_BTN_TX (
        .clk(clk),
        .in (btn_tx_start),

        .out(w_btn_tx_start)
    );

    uart U_UART_Tx (
        .clk(clk),
        .reset(reset),
        .tx_start(w_btn_tx_start),
        .tx_data(8'h41),  // 'A'

        .tx(txd),
        .tx_done()
    );

endmodule

`timescale 1ns / 1ps

module button (
    input clk,
    input in,

    output out
);

    localparam N = 64;

    reg [N-1:0] Q_reg, Q_next;
    wire w_debounce_out;
    reg [1:0] diff_reg, diff_next;


    // debounce circuit
    always @(*) begin
        Q_next = {Q_reg[N-2:0], in};  // left shift
    end


    always @(posedge clk) begin
        Q_reg    <= Q_next;  // 매 클럭마다 shift돼서 출력
        diff_reg <= diff_next;
    end


    assign w_debounce_out = &Q_reg;


    // dff edge-detector
    always @(*) begin
        diff_next[0] = w_debounce_out;
        diff_next[1] = diff_reg[0];
    end


    // output logic
    assign out = ~diff_reg[0] & diff_reg[1];

endmodule





버튼 로직

• Q_next : N클럭 동안의 in 의 상태정보가 저장되어 있음
• Debouncer : N클럭 동안 버튼이 계속 눌렸는지 안눌렸는지 알 수 있음
• Edge Detector : Rising edge, Falling edge Trigger





결과

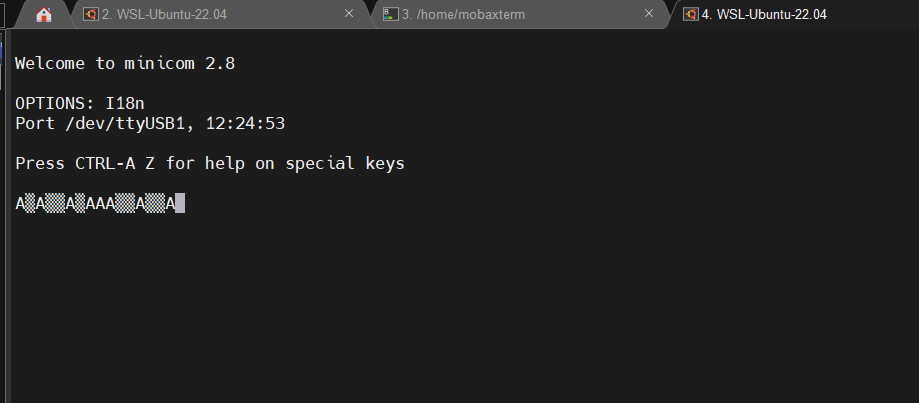

→ 송신이 되긴 하지만 오류가 섞임





---













Made By Minseok KIM
